FDD2141MS

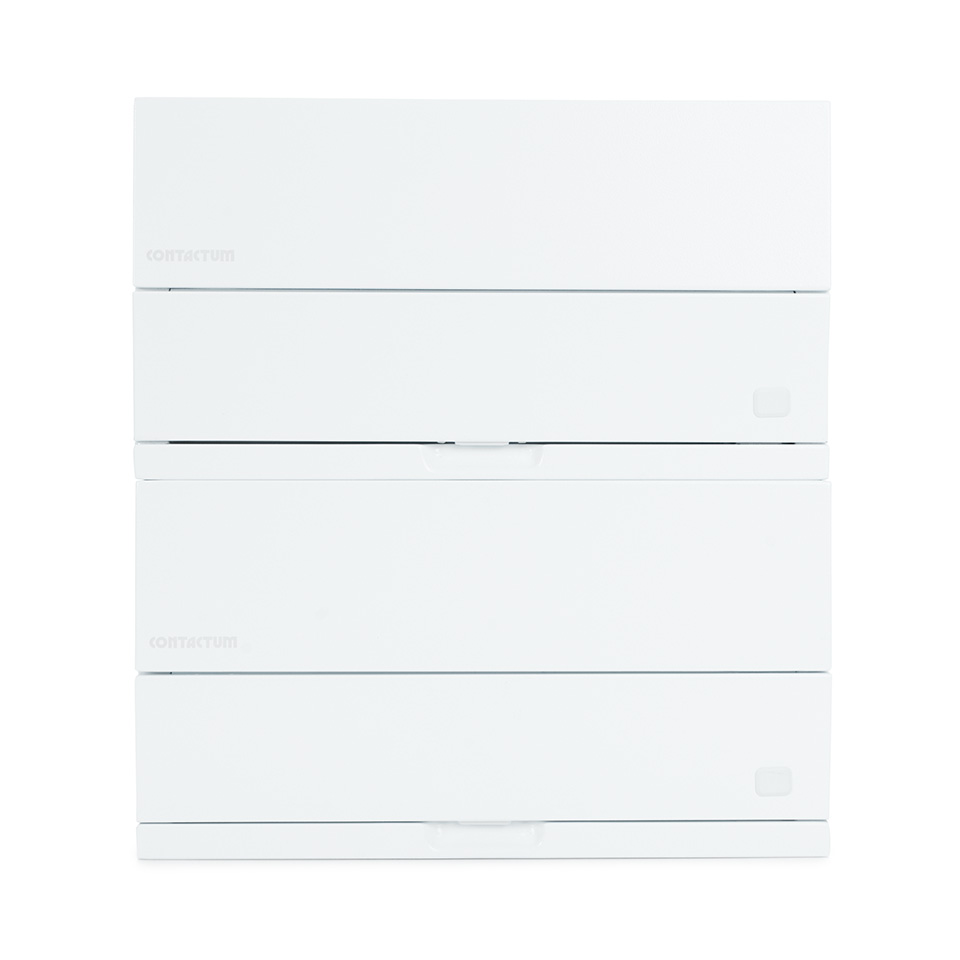

14Way 100A Flush Mounted Consumer Unit ISO Incomer

General

GTIN-13 / EAN
5056009599958
Colour
White
Security features
optional security lock available
Width mm
299
Height mm
524
Depth mm
100

Technical

Associated standards
BS EN 61439-3
Rated voltage
220-250V
Rated current
100A
Frequency
50-60Hz
Wiring system
2 pole

Flush Dual Row

6 outgoing ways top row

8 outgoing ways bottom row

Ambient operating temperature
-5 to 40°C (24hour average not exceeding 25°C)
Degree of protection
IP4X
Width in number of modular spacings
8
Nature of supply
AC
DIN-rail
Yes
Extension possible
No
Type of cover
steel
Type of door
steel
Material housing
steel
Plate thickness cabinet
1.2mm
Plate thickness door/cover
1.2mm
Mounting method
Flush
Number of outgoing ways
14
