DDS14188ASPMS-P01

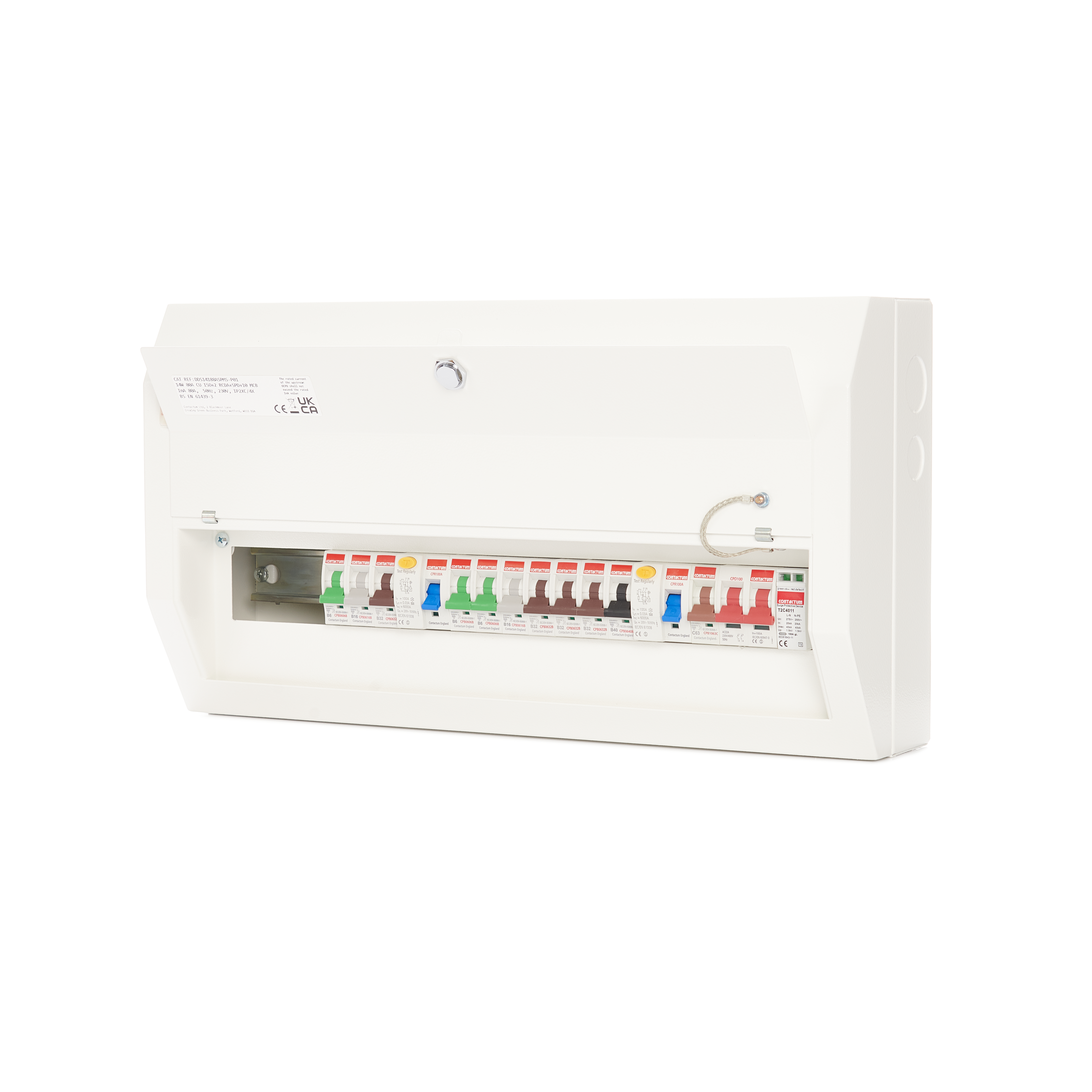

14Way 80A Consumer Unit ISO Incomer + 2 RCD + SPD + 10 MCB

General

Trade price
£233.14
Box quantity
1
ABC indicator
A
Colour
White
Security features
optional security lock available
Total gross weight (g) includes packing
7550
Total net weight (g) excluding packaging
7187
Individual unit weight (g)
7187
Width mm
474
Height mm
260
Depth mm
130
Size/Dimensions (mm)
474X260X130
Surf area M^2
0.437

Technical

Associated standards
BS EN 61439-3
Rated voltage
220-250V
Rated current
80A
Frequency
50-60Hz
Wiring system
2 pole
Ambient operating temperature
-5 to 40°C (24hour average not exceeding 25°C)
Degree of protection
IP4X
Width in number of modular spacings
22
Nature of supply
AC
Rated fault current
30mA
DIN-rail
yes
Extension possible
yes
Type of cover
steel
Type of door
steel
Material housing
steel
Plate thickness cabinet
1.2
Plate thickness door/cover
1.2
Mounting method
surface
Number of outgoing ways
14
