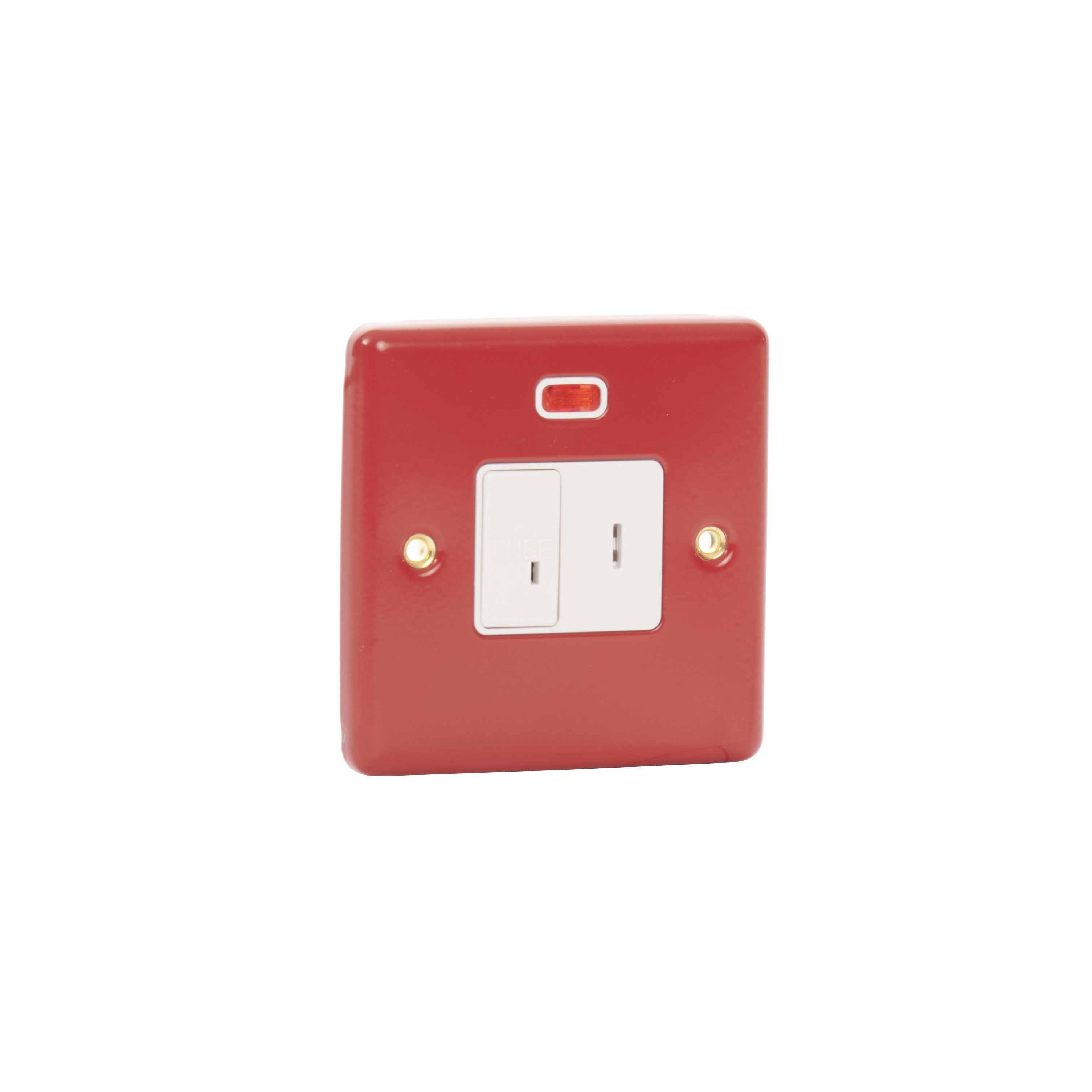

CLA3467RS

13A Key Switch DP Neon Flush Mounting Red

General

Trade price
£28.68
Box quantity
1
ABC indicator
A
GTIN-13 / EAN
5056199014743
Insert colour
white
Face plate finish
metal
With indicator lamp
yes
Security features
key activated
Total gross weight (g) includes packing
167
Total net weight (g) excluding packaging
165
Individual unit weight (g)
165
Width mm
80
Height mm
80
Depth mm
40
Size/Dimensions (mm)
80X80X40
Surf area M^2
0.026

Technical

Associated standards
BS 1363-4
Rated voltage
220-250V
Rated current
13A
Frequency
50-60Hz
Wiring system
2 pole
Min. switch contact gap
3mm
Ambient operating temperature
-5 to 40°C (24hour average not exceeding 25°C)
Degree of protection
IP2X
Terminal capacity
3 x 2.5mm 2 x 4.0mm 2 x 6.0mm
Face plate material
steel
Nature of supply
AC
Fixing screws
2 x M3.5
Mounting method
surface
