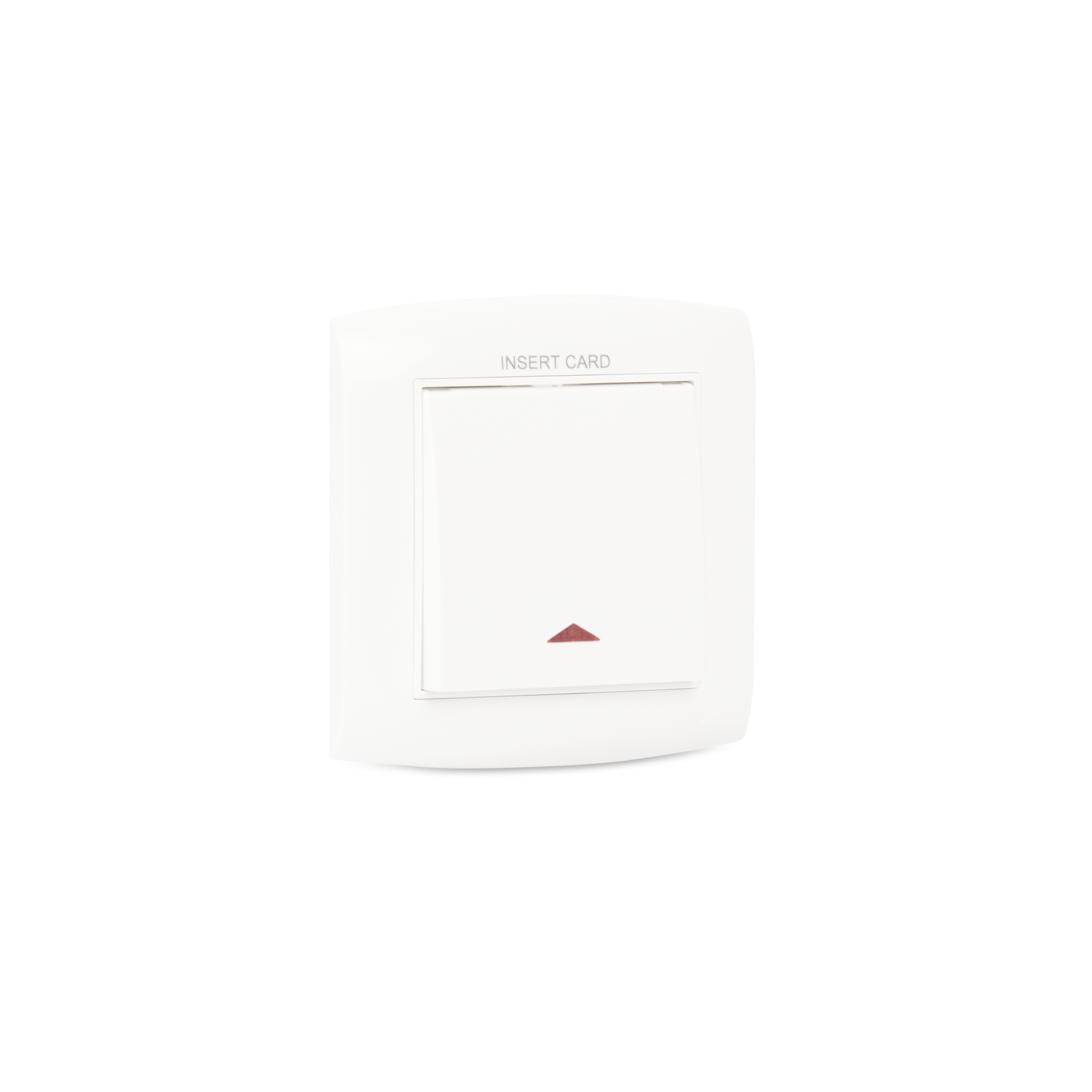

ALF4711KSWHW

16A 1G KeyCard Switch Indicator

General

Trade price
£27.58
Box quantity
1
ABC indicator
A
Insert colour
white
Face plate finish
moulded
With indicator lamp
yes
Security features
card activated
Security key type
key card
Total gross weight (g) includes packing
188
Total net weight (g) excluding packaging
150
Individual unit weight (g)
150
Width mm
87
Height mm
95
Depth mm
40
Size/Dimensions (mm)
87X95X40
Surf area M^2
0.031

Technical

Associated standards
BS EN 60669-1
Rated voltage
220-250V
Rated current
16A
Frequency
50-60Hz
Min. switch contact gap
3mm
Ambient operating temperature
-5 to 40°C (24hour average not exceeding 25°C)
Degree of protection
IP2X
Terminal capacity
3 x 1.0mm 3 x 1.5mm 1 x 2.5mm
Face plate material
polycarbonate
Minimum wall box depth
35
Nature of supply
AC
Fixing screws
2 x M3.5
